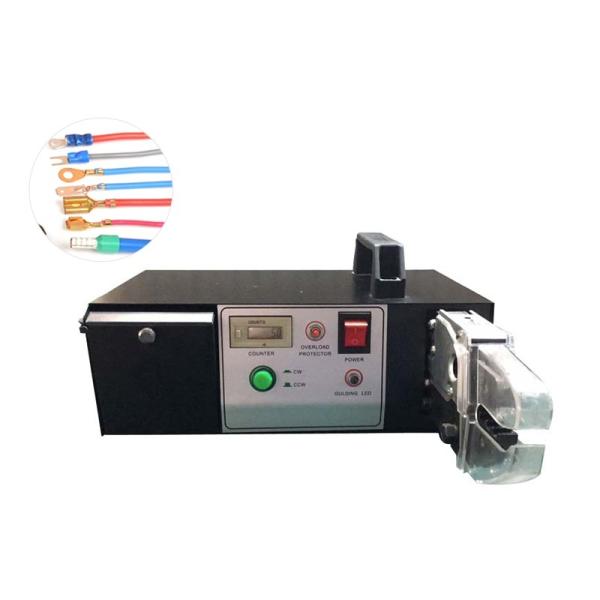

12.7KN Cable Lug Crimping Machine

Product Categories

Chenxin Automation Equipment(Guangzhou) Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 127KN Cable Lug Crimping Machine
Brand: CHENXIN
Price: 1 USD

Brand Name : CHENXIN

Model Number : CX-GX03

Certification : ISO9001

Place of Origin : CHINA

MOQ : 5 sets

Price : FOB Shenzhen

Payment Terms : T/T

Supply Ability : 500 sets per month

Delivery Time : 7-10 working days

Packaging Details : wooden case/box

Capacity : 1.5S(60HZ) ,1.8S(50HZ)

Applicable terminal : Non-insulation terminal ≤10mm2 Insulation ≤6mm2 Tubular terminal ≤35mm2

Crimping force : 12.7KN

stripping function : optional

Contact Now

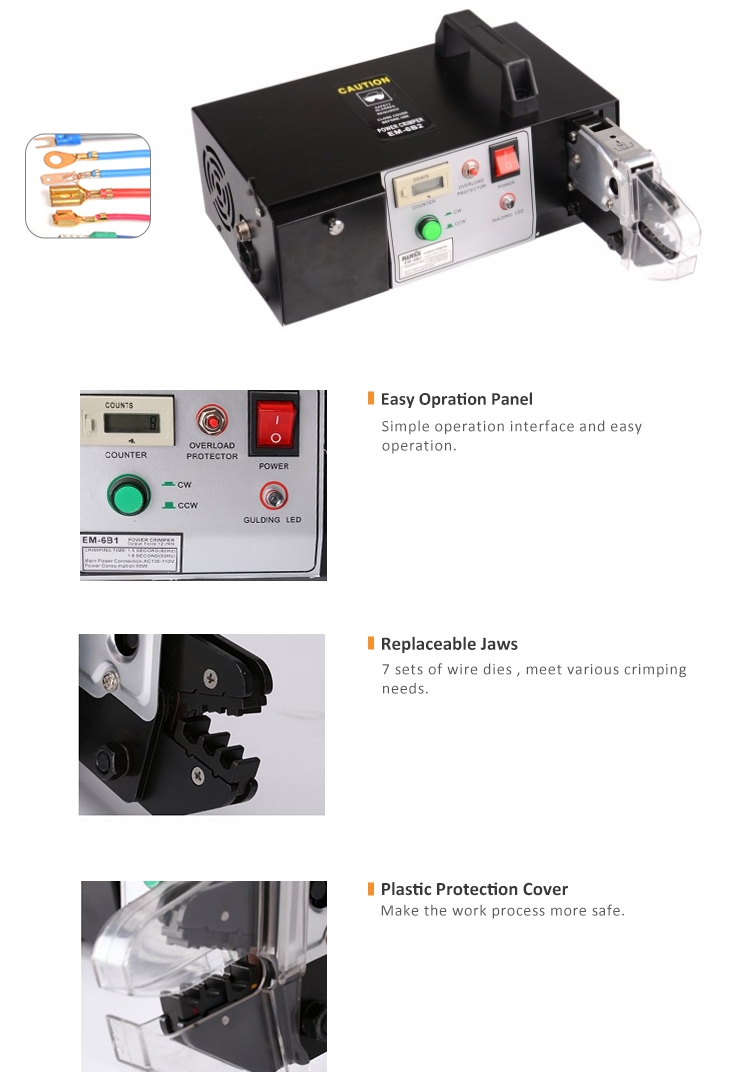

Semi-Automatic Cable Terminal Crimping Machine, Cable Lug Crimping Tools

Technical Parameter

Model of machine	CX-GX03	CX-GX03-1
Stripping function	with	without
Capacity	1.5S(60HZ) ,1.8S(50HZ)	1.5S(60HZ) 1.8S(50HZ)
Crimping size	Non-insulation terminal ≤10mm2 Insulation ≤6mm2 Tubular terminal ≤35mm2	Non-insulation terminal ≤10mm2 Insulation ≤6mm2 Tubular terminal ≤35mm2
Crimping force	12.7kn	12.7kn
Power	90W	90W
Power source	AC220V/110V	AC220V/110V
Weight	18KG	18KG
Dimension	W320mm×L265mm×H150mm	W320mm×L265mm×H150mm

12.7KN Cable Lug Crimping Machine
